Automatic Sliding Door Opener DE500

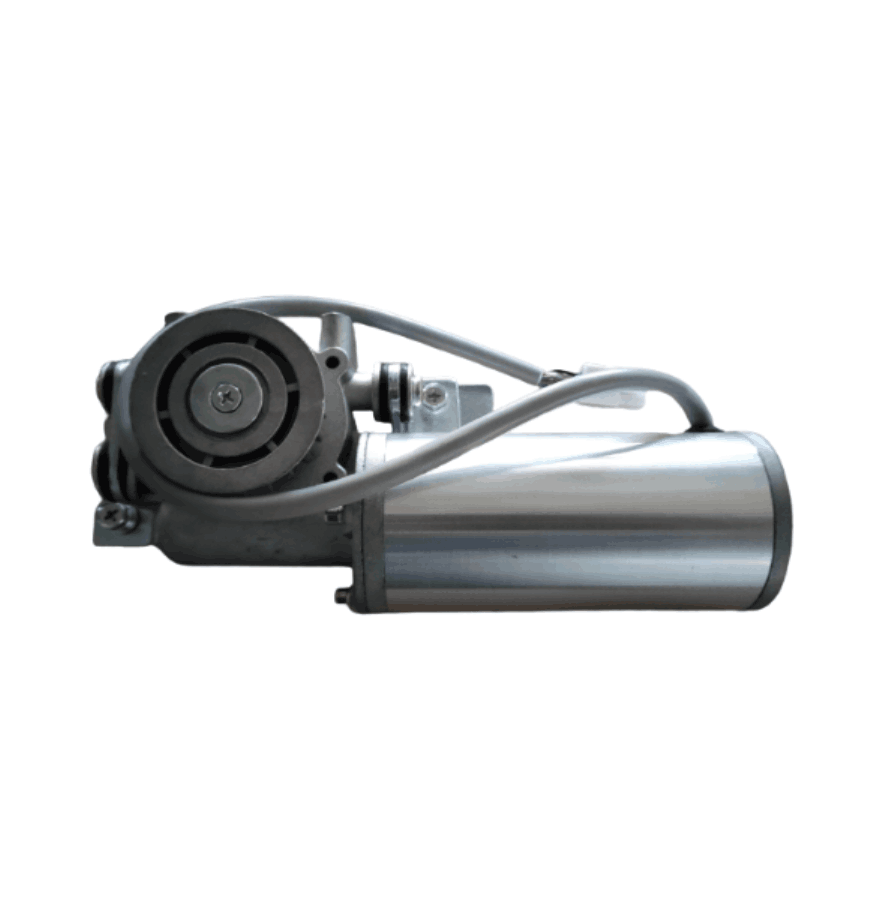

    Automatic sliding door opener with 100W DC brushless DC motor

    EMAIL   INQUIRY

Technical Specification

Parameter

DE-500

Range of the Door

Single-leaf

Double-leaf

Door Leaf max Weight

300kgx1

250kg x 2

Door Width

500-2800mm

500-2800mm

Installation Type

Surface Mounting

Max Door Leaf Thickness

50mm

Motor

DC24V, 100W

Power Supply

AC220V+/-10%, 50-60 Hz

Input Current (Standby)

0.095A

Input Current(Operation)

1.6A

Opening Speed

450-750mm/s (adjustable)

Closing Speed

450-750mm/s (adjustable)

Creep Speed

30-100mm/s (adjustable)

Hold-open Time

0-15s (adjustable)

Hold-Close Force

70N<f<220N

Manual Pushing Force

<100N

Power Consumption

<150W

Ambient Temperature

-20+50
