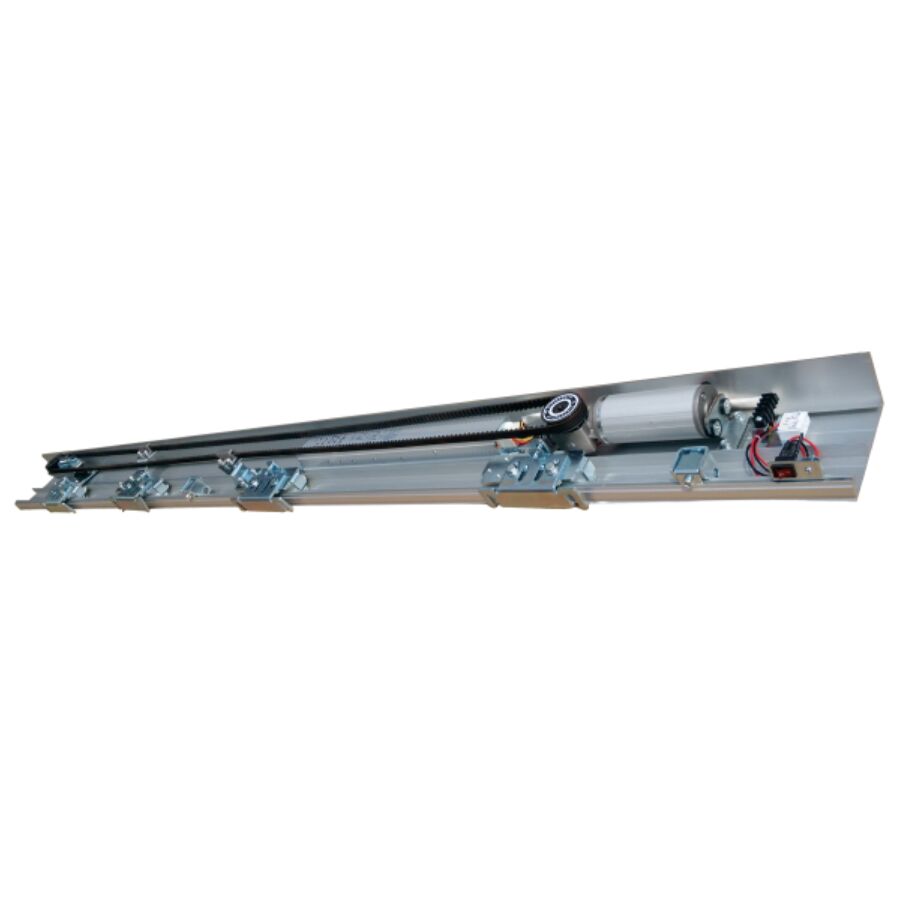

Automatic Glass Sliding Door DE200

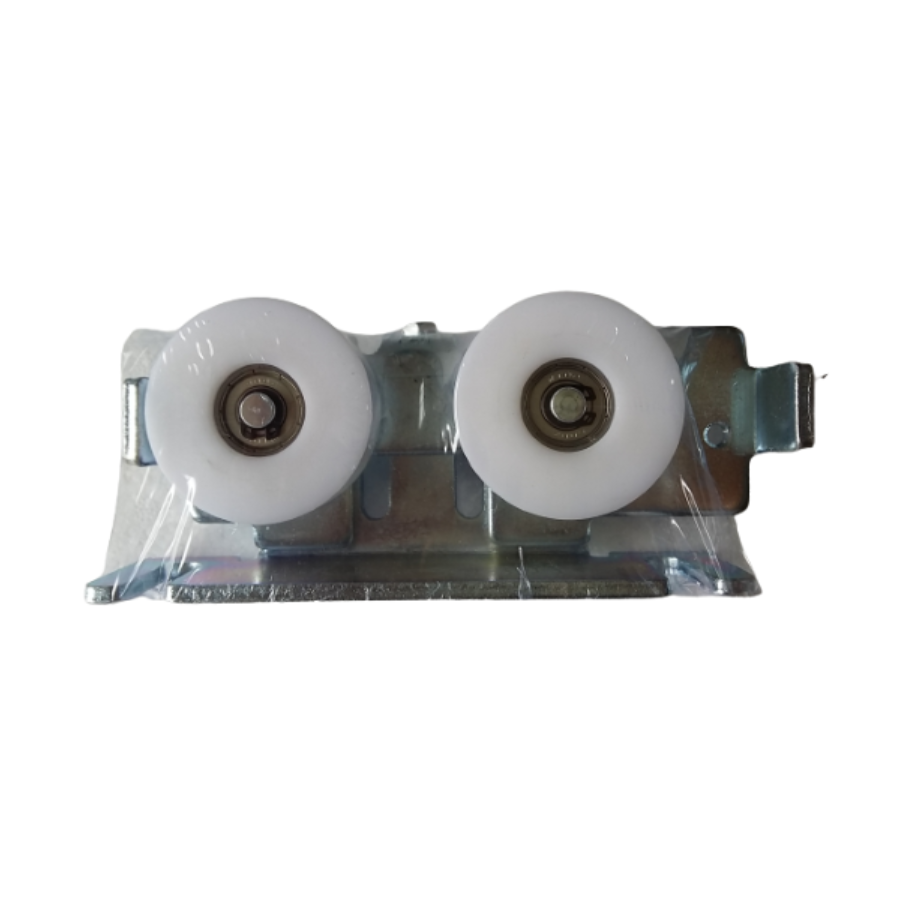

    Anti-derailment Design: new hanger device, new aluminum track
  • Patent Number:201520675463.8
  • More Lifting weight
  • Anti-derailment Design
  • More Silent Working

    EMAIL   INQUIRY

Technical Specification

Parameter

DE-200

Range of the Door

Single-leaf

Double-leaf

Door Leaf max Weight

180kg

150kg x 2

Door Width

650-1250mm

650-1250mm

Installation Type

Surface Mounting

Max Door Leaf Thickness

50mm

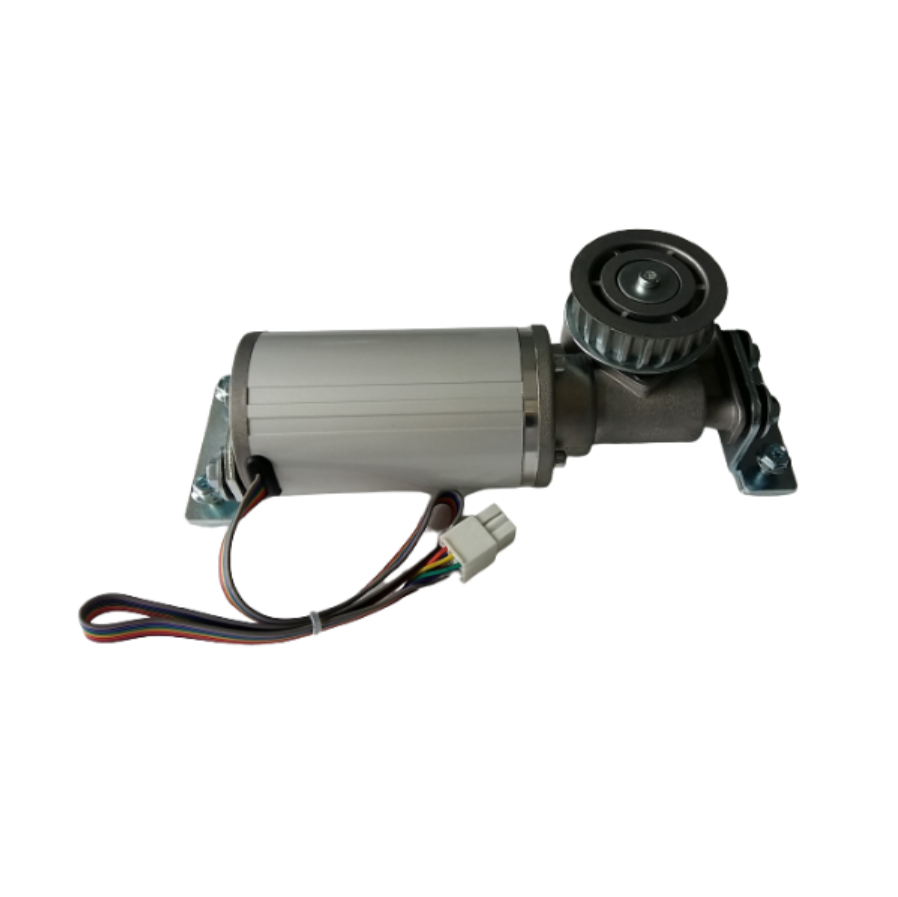

Motor

DC24V, 80W

Power Supply

AC220±10%, 50-60 Hz

Input Current (Standby)

0.095A

Input Current(Operation)

1.6A

Opening Speed

450-750mm/s (adjustable)

Closing Speed

450-750mm/s (adjustable)

Creep Speed

30-100mm/s (adjustable)

Hold-open Time

0-20s (adjustable)

Hold-Close Force

70N<f<220N

Manual Pushing Force

<120N

Power Consumption

<150W

Ambient Temperature

-20+50 ℃
